The CX5010 and CX5020 are Embedded PCs from the CX5000 series based on Intel Atom® processors and differ only by the CPU version. The CX5010 has a 1.1 GHz Intel Atom® Z510 processor, while the CX5020 has a 1.6 GHz Intel Atom® Z530 processor. Apart from the clock speed, the two processors also differ by the fact that the Z530 features hyperthreading technology, i.e. it has two virtual CPU cores for more effective execution of software.

Depending on the installed TwinCAT runtime environment, the CX5010/CX5020 can be used for the implementation of PLC or PLC/motion control projects (with or without visualization).

The CX5010 and CX5020 are Embedded PCs from the CX5000 series based on Intel Atom® processors and differ only by the CPU version. The CX5010 has a 1.1 GHz Intel Atom® Z510 processor, while the CX5020 has a 1.6 GHz Intel Atom® Z530 processor. Apart from the clock speed, the two processors also differ by the fact that the Z530 features hyperthreading technology, i.e. it has two virtual CPU cores for more effective execution of software.

Depending on the installed TwinCAT runtime environment, the CX5010/CX5020 can be used for the implementation of PLC or PLC/motion control projects (with or without visualization).

Processor Intel® Core i7 2715QE 2.1 GHz
Number of cores 4
Flash memory 20 GB or 40 GB CFast flash card (depending on the operating system), optionally extendable
Main memory 4 GB DDR3 RAM (not expandable)
Persistent memory 128 kB NOVRAM integrated
Interfaces 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface
Cooling integrated fan with ball bearings and speed monitoring
Diagnostics LED 1 x power, 1 x TC status, 1 x flash access, 2 x bus status
Clock internal battery-backed clock for time and date (battery exchangeable)
Operating system Windows Embedded Compact 7 (TwinCAT 3 supports only one CPU core), Windows Embedded Standard 7 P, Windows 10 IoT Enterprise 2016 LTSB, TwinCAT/BSD
Control software TwinCAT 2 runtime
TwinCAT 3 runtime (XAR)
I/O connection via power supply module (E-bus or K-bus, automatic recognition)
Power supply 24 V DC (-15 %/+20 %)
Max. power consumption 32 W
Dimensions (W x H x D) 144 mm x 99 mm x 91 mm
Weight approx. 1230 g
Relative humidity 95 %, no condensation
Operating/storage temperature -25�60 °C/-40�85 °C
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
Protection rating IP20
Approvals/markings CE, UL
TwinCAT 3 platform level High Performance (70); please see here for an overview of all the TwinCAT 3 platform level

>>> Refer to technical document: cx20x0_en ]]> //prayrug.com/en/products/cx2040-basic-cpu-module/feed 0 //prayrug.com/en/products/cx2030-basic-cpu-module //prayrug.com/en/products/cx2030-basic-cpu-module#respond Wed, 10 Jan 2024 04:16:55 +0000 //prayrug.com/products/cx2030-mo-dun-cpu-co-ban BRAND: BECKHOFF   PRODUCT CODE: CX2030 CATEGORY: PLC BECKHOFF SUPPLIER: SUNLY]]>

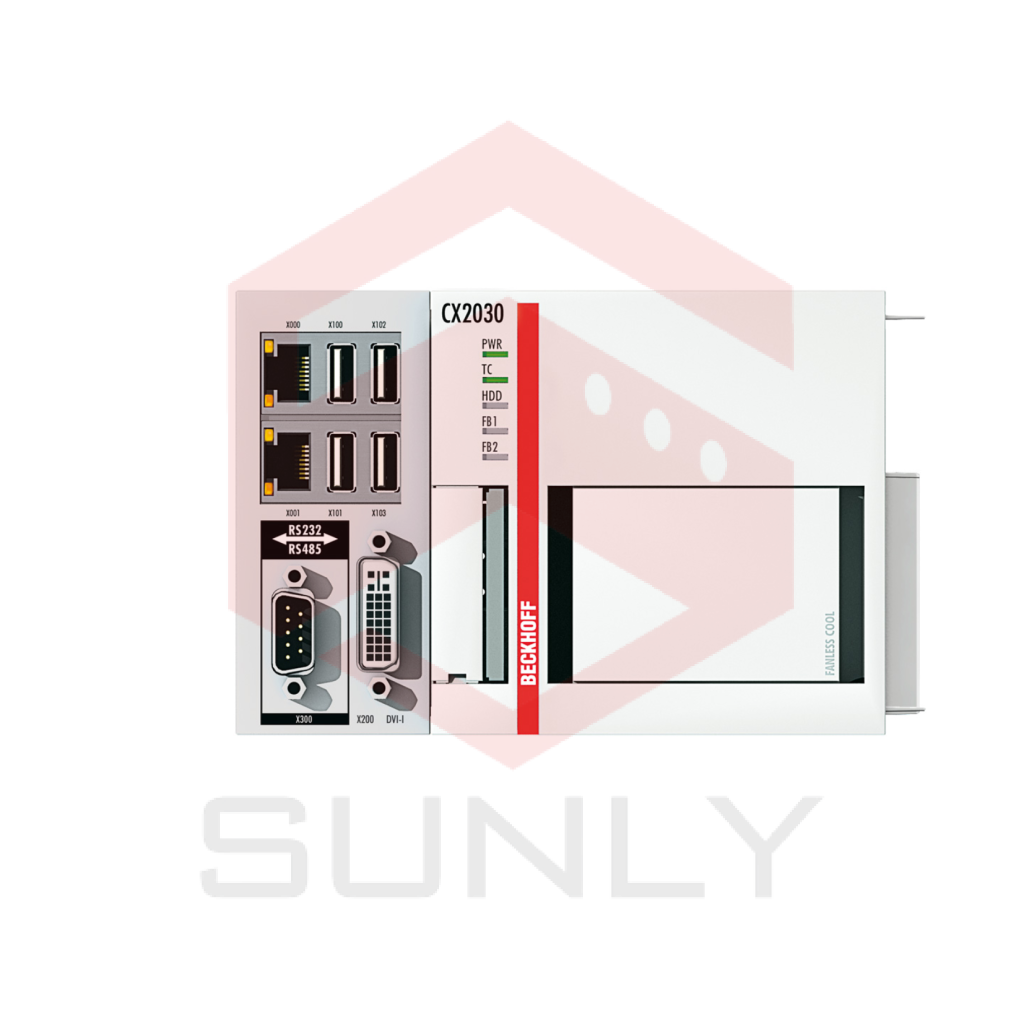

The CX2030 has a 1.5 GHz Intel® Core i7 dual-core CPU, it is fanless and has no rotating components. In addition to the CPU and chipset the CX2030 also contains the main memory with 2 GB RAM as standard. 4 GB is possible as an option. The controller boots from the CFast flash memory card.

The basic configuration of the CX2030 includes a CFast memory card, two independent Gbit Ethernet interfaces, four USB 2.0 interfaces and a DVI-I interface.

The CPU has a 128 kB NOVRAM persistent data memory for situations where no UPS is used.

The unit can optionally be ordered with a fieldbus or serial interface. Other components from the CX2000 family can be connected via the multi-pin terminals on either side. The operating system is Microsoft Windows Embedded Compact 7, Windows Embedded Standard 7 P or Windows 10 IoT Enterprise 2016 LTSB. TwinCAT automation software transforms a CX2030 system into a powerful PLC and motion control system that can be operated with or without visualization. Due to its high-performance the CX2030 can be used for interpolating 3-D path movements with TwinCAT NC I.

Up to four modules can be connected to the basic CPU module. The connection order is irrelevant. Internally the modules are connected via PCI Express and can be connected subsequently to the CPU in the field.

The power supply for the CPU module comes from a CX2100 power supply module, which is connected on the right-hand side of the CPU. Two further CFast memory card modules

Processor Intel® Core i7 2610UE 1.5 GHz

Number of cores 2

Flash memory 20 GB or 40 GB CFast flash card (depending on the operating system), optionally extendable

Main memory 2 GB DDR3 RAM (expandable ex factory to 4 GB)

Persistent memory 128 kB NOVRAM integrated

Interfaces 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface

Cooling passive cooling, optionally with active cooling ex factory

Diagnostics LED 1 x power, 1 x TC status, 1 x flash access, 2 x bus status

Clock internal battery-backed clock for time and date (battery exchangeable)

Operating system Windows Embedded Compact 7 (TwinCAT 3 supports only one CPU core), Windows Embedded Standard 7 P, Windows 10 IoT Enterprise 2016 LTSB, TwinCAT/BSD

Control software TwinCAT 2 runtime

TwinCAT 3 runtime (XAR)

I/O connection via power supply module (E-bus or K-bus, automatic recognition)

Power supply 24 V DC (-15 %/+20 %)

Max. power consumption 27 W

Dimensions (W x H x D) 144 mm x 99 mm x 91 mm

Weight approx. 1165 g

Relative humidity 95 %, no condensation

Operating/storage temperature -25�60 °C/-40�85 °C

EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4

Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27

Protection rating IP20

Approvals/markings CE, UL

TwinCAT 3 platform level Mid Performance (60); please see here for an overview of all the TwinCAT 3 platform level

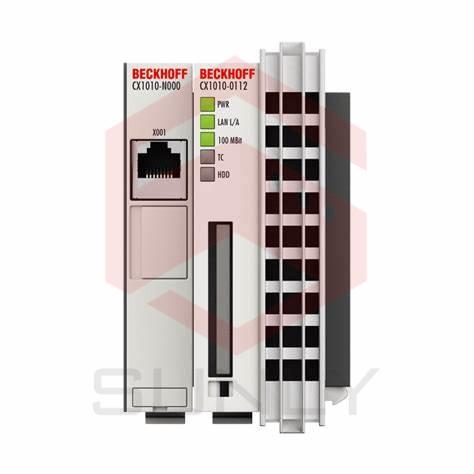

The CX1010 CPU module is the basic module of the CX system. It comprises the CPU and the internal flash memory in two implementation levels and offers the option to operate an additional memory medium in Compact Flash format II. An Ethernet interface is part of the basic configuration. All other CX family components can be connected via the PC/104 interface that is available on both sides. The CPU module can be equipped with different hardware and software options: the operating system can be Windows Embedded CE 6 or Windows Embedded Standard 2009.

The basic configuration of the CX1010 includes a 128 MB Compact Flash card. The TwinCAT 2 automation software transforms a CX1010 system into a powerful PLC and motion control system that can be operated with or without visualization. Further system interfaces or fieldbus connections can be added to the basic CPU module. The passive cooling module is included in the scope of supply. The CPU module requires a CX1100 type power supply module.Processor compatible with Intel® Pentium® MMX, clock frequency 500 MHz

Number of cores 1

Flash memory slot for Compact Flash card, 128 MB included (expandable)

Main memory 256 MB DDR RAM (not expandable)

Interfaces 1 x RJ45 10/100 Mbit/s

Diagnostics LED 1 x power, 1 x LAN speed, 1 x LAN activity, TC status, 1 x flash access

Expansion slot 1 x Compact Flash type II insert with ejector

Clock internal battery-backed clock for time and date (battery exchangeable)

Operating system Windows Embedded CE 6, Windows Embedded Standard 2009

Control software TwinCAT 2 PLC runtime or TwinCAT 2 NC PTP runtime

System bus 16 bit ISA (PC/104)

I/O connection via power supply module (E-bus, K-bus, K-bus/IP-Link)

Power supply via system bus (through CX1100-xxxx power supply modules)

Max. power consumption 8 W

Dimensions (W x H x D) 58 mm x 120 mm x 91 mm

Weight approx. 355 g

Relative humidity 95 %, no condensation

Operating/storage temperature 0�50 °C/-25�85 °C

EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4

Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27

Protection rating IP20

Approvals/markings CE, UL
