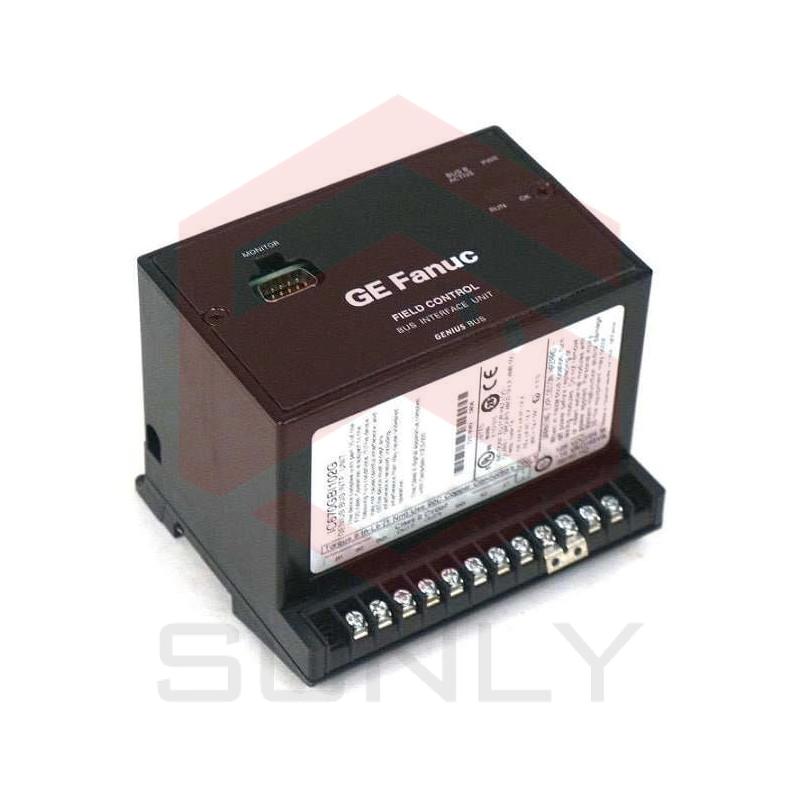

The IC670GBI102 module is a GE Fanuc Genius Bus interface module. It has a nominal voltage rating of 120 Volts AC and 125 Volts DC. It is used in Field Control systems and it is used to control a wide variety of host architectures. It is fully compatible with the IC670GB and iC670GBI modules. The bus interface unit is mounted with a DIN Rail. The module comes with a metal grounding strip underneath the terminal block. The Bus interface module helps with intelligent processing and I/O scanning applications and it connects up to 8 I/O modules at a time. The IC670GBI102 module interfaces with Field Control I/O modules and a host PLC or computer by using the Genius bus. It can exchange a maximum of 128 Bytes of input and output data with each host in a single bus scan. It helps with fault reporting, analog scaling, and range selection applications. The self diagnostics run when the module starts up and they check for errors.

The GE Fanuc IC670GBI102 Field Control Genius Bus interface module can be used with both a single bus and a dual bus setup. The bus interface module operates best with an ambient air temperature between 0 degrees Celsius and 60 degrees Celsius. The module is CE certified and listed with the cULus standard. The IC670GBI102 interface module comes with a D connector for connecting to a display monitor or terminal. Along with the connector, there are LED indicators to show the power status and the “Bus Active” status. The operating frequency of the bus interface module is 50 to 60 Hertz. The interface module has 9 N-m of rated torque. For wiring, this module uses 90 degrees Celsius rated copper conductor wire.

Technical Specifications for IC670GBI102

Manufacturer GE Fanuc

Series Field Control

Part Number IC670GBI102

Product Type Bus interface module

Voltage 120 Volts AC/125 Volts DC

Mounting DIN rail

Maximum Exchange 127 Bytes of I/O data

Temperature 0 to 60 degrees Celsius

Standards CE, cULus

Frequency 50 to 60 Hertz
