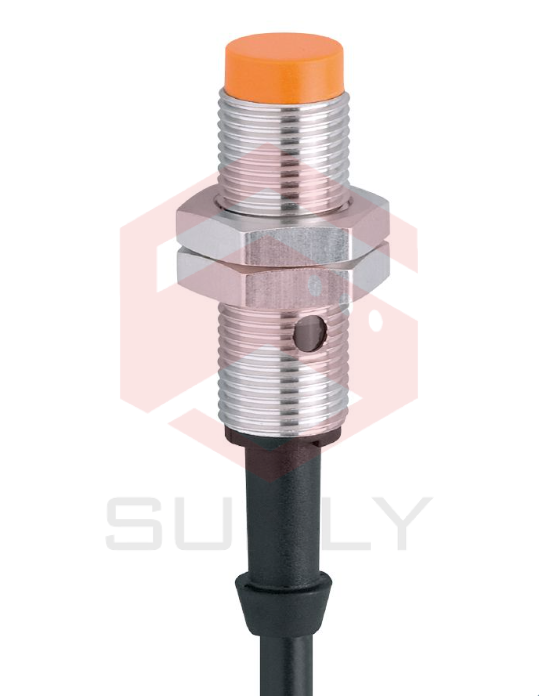

IF5254
IFB3004-BPKG/6M
Particularly short housing
For use where space is restricted
Robust metal housing for use in harsh industrial environments
Very high switching frequency
With long PVC cable
Technical details
| Product characteristics
Electrical design: PNP Output function: normally open Sensing range [mm]: 4 Housing: Threaded type |
| Dimensions [mm]: M12 x 1 / L = 35
Electrical data: Operating voltage [V]: 10…36 DC Current consumption [mA]: 15; (24 V) Protection class: III Reverse polarity protection: yes |
| Outputs
Electrical design: PNP Output function: normally open Max. voltage drop switching output DC [V]: 2.5 Permanent current rating of switching output DC [mA]: 150 Switching frequency DC [Hz]: 1500 Short-circuit protection: yes Type of short-circuit protection: yes (non-latching) Overload protection: yes |
| Monitoring range
Sensing range [mm]: 4 Real sensing range Sr [mm]: 4 ± 10 % |
| Operating distance [mm]: 0…3.25 |
| Accuracy / deviations
Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 Hysteresis [% of Sr]: 3…15 Switch-point drift [% of Sr]: -10…10 |
| Operating conditions
Ambient temperature [°C]: -25…80 Protection: IP 67 |
| Tests / approvals
EMC: EN 60947-5-2, EN 55011, class B MTTF [years]: 2531 |
| Mechanical data
Weight [g]: 257 Housing: Threaded type Mounting: non-flush mountable Dimensions [mm]: M12 x 1 / L = 35 Thread designation: M12 x 1 Material: brass white bronze coated; sensing face: PC |
| Displays / operating elements: Display
Switching status, 1 x LED, yellow |
| Accessories
Items supplied: lock nuts: 2 |
| Remarks
Pack quantity: 1 pcs |
| Electrical connection
Connection: Cable: 6 m, PVC; 3 x 0.34 mm² |
>>> Refer to technical document: IF5254-00_EN-GB
