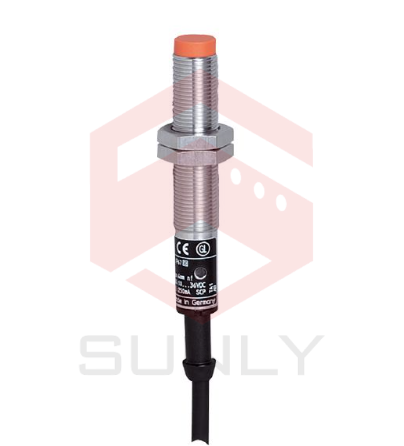

IF5337
IFA3004-ANKG
Robust metal housing for use in harsh industrial environments
Wide operating temperature range
High protection rating for the requirements of harsh industrial environments
Very high switching frequency
For a precise position detection on machines
Technical details
| Feature | Specification |
|---|---|
| Electrical Design | |
| Output type | NPN |
| Output function | Normally open (NO) |
| Sensing range | 4mm |
| Housing type | Threaded |
| Dimensions | M12 x 1 / L = 71 |
| Electrical Data | |
| Operating voltage | 10…36 VDC |
| Current consumption | 15mA (24 V) |
| Protection class | II |
| Reverse polarity protection | Yes |
| Outputs | |
| Output type | NPN |
| Output function | Normally open (NO) |
| Max. voltage drop switching output DC | 2.5V |
| Permanent current rating of switching output DC | 250mA |
| Switching frequency DC | 400Hz |
| Short-circuit protection | Yes |
| Type of short-circuit protection | Yes (non-latching) |
| Overload protection | Yes |
| Monitoring Range | |
| Sensing range | 4mm |
| Real sensing range Sr | 4 ± 10% |
| Operating distance | 0…3.25mm |
| Accuracy / deviations | |
| Correction factor | Steel: 1 / Stainless steel: 0.7 / Brass: 0.4 / Aluminum: 0.3 / Copper: 0.2 |
| Hysteresis [% of Sr] | 1…15 |
| Switch-point drift [% of Sr] | -10…10 |
| Operating Conditions | |
| Ambient temperature | -25…80°C |
| Protection | IP 67 |
| Tests / Approvals | |
| EMC | EN 60947-5-2 |
| EN 55011 | Class B |
| MTTF (Mean Time To Failure) | 945 years |
| Mechanical Data | |
| Weight | 101.5g |
| Housing type | Threaded |
| Mounting | Non-flush mountable |
| Dimensions | M12 x 1 / L = 71 |
| Thread designation | M12 x 1 |
| Material | Brass white bronze coated; PC |
| Displays / Operating Elements | |
| Display | Switching status |
| 1 x LED, yellow | |
| Accessories | |
| Items supplied | Lock nuts: 2 |
| Remarks | |
| Pack quantity | 1 pcs. |
| Electrical Connection | |
| Connection | Cable: 2 m, PVC; 3 x 0.34 mm² |
>>> Refer to technical document: IF5337-00_EN-GB
