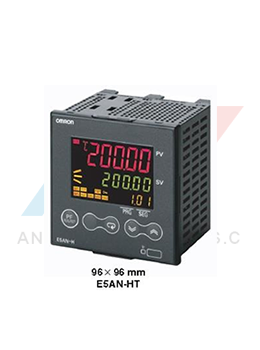

_ Advanced timed thermostats size 48×96, 96×96
_ Supports up to 8 programs, each program has a maximum of 32 steps.
_ Time setting 0-9999s or 0-9999 minutes selectable
_ LCD display 5 LED colors clear and easy to see
_ Thermocouple temperature input, Pt100, infrared, Analog optional.
_ Display 2 lines 5 color LED with high resolution of 0.010C
_ Power supply 100-240VAC±15% or 24VAC/DC±15%
_ Output multiple options: Relay (contact), transistor (SSR), Analog (4-20mA)
_ ON/OFF or PID temperature control function
_ Has position control model (servo valve application)
_ Additional functions can be added with optional card: Invent, RS-485, Heater-Burnout, transfer
60ms high sampling rate, and auto-correction function (Auto-turning, self-turning)
_ Easy connection with CX-Thermo ver 4.0 software via dedicated USB cable
_ Meets UL/CSA standards and CE marking meets IEC IP66 . facetightness
_ Synthetic plastic cover, working temperature -10~550C
_ Meets UL 61010-1, CSA C22.2 No. 1010-1
