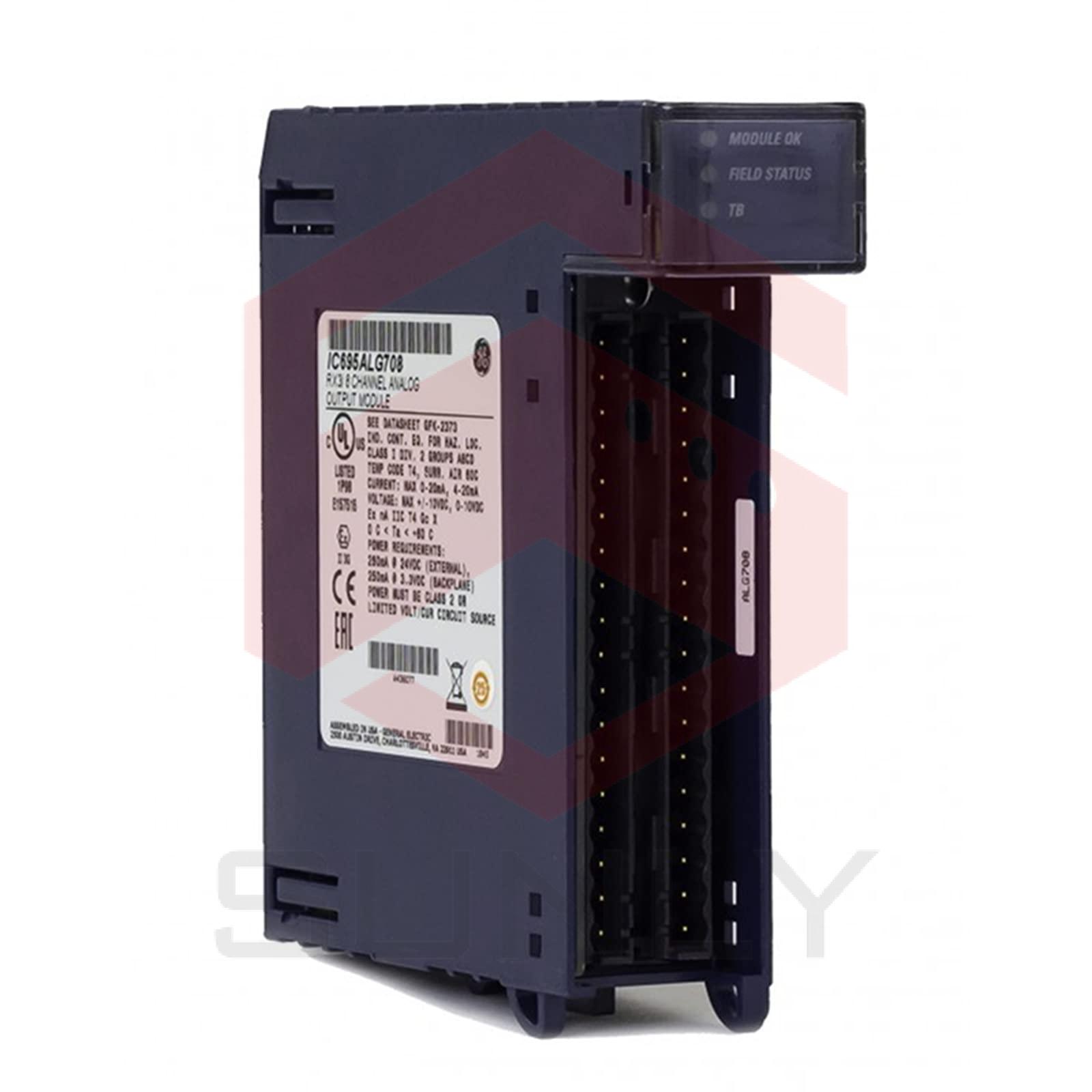

The IC695ALG708 output module is an analog output module from GE Fanuc that has been designed and manufactured in the RX3i PACSystems series to be used with the RX3i PACSystems PLCs. This analog output module features 8 output channels that can all be independently configured by the operators to be either voltage output channels or current output channels. The different kinds of outputs can be used to handle different applications and to connect to different devices in the RX3i PACSystems PLC. When any of the outputs on the IC695ALG708 analog output module are configured as voltage outputs, they can operate with output voltage ranges of 0 Volts to 10 Volts or -10 Volts to +10 Volts. When any of the outputs on the IC695ALG708 analog output module are configured as current outputs instead, these outputs can operate with output current ranges of 0 milliamps to 20 milliamps or 4 milliamps to 20 milliamps.

All 8 of the output channels on the GE Fanuc RX3i PACSystems IC695ALG708 analog output module update quickly. The update time is only 8 milliseconds maximum per output channel. The maximum output load that the IC695ALG708 analog output module can handle is a load of 850 Ohms and the module’s maximum power dissipation rating during normal operation is 7.25 Watts. This module uses an external power supply that can provide DC power in the range of 19.2 to 30 Volts DC. The power consumption ratings of the IC695ALG708 analog output module are 375 milliamps at 3.3 Volts DC voltage and 315 milliamps at 24 Volts DC isolated voltage.

Technical Specifications

No. of channels: 8

Voltage Range: 0 to +10 V, -10 to +10 V

Current Range: 0-20 mA, 4-20 mA

Update Rate: 8 msec

Output Load: 850 Ohms max

Power Consumption:    375 mA @ +3.3VDC, 315 mA @ +24VDC Isolated
